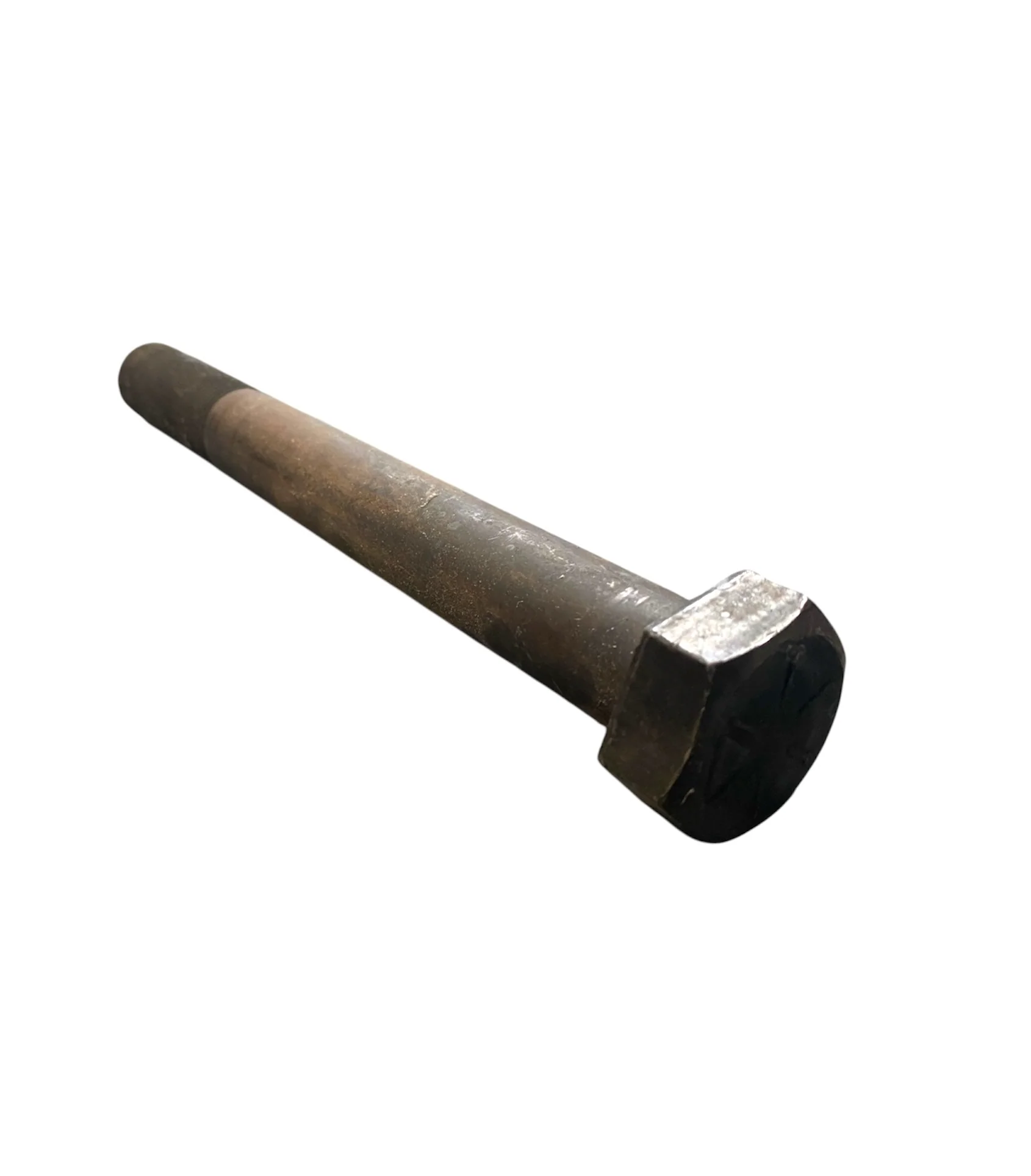

1-14 x 9in UNF Grade 8 Hex Cap Screw
Made from medium carbon steel, Grade 8 cap screws have a greater tensile strength than Grade 5. Designed for use in high stress applications, these bolts shall be heat treated, oil quenched, and tempered at a minimum tempering temperature of 800 degrees (F).With thread extending 1 1/4" up the shaft, Proof load is 120,000 PSI with a minimum Yield Strength of 130,000 PSI and Tensile Strength of 150,000 PSI.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
1-14 x 9in UNF Grade 8 Hex Cap Screw
1-14 x 9in UNF Grade 8 Hex Cap Screw
Made from medium carbon steel, Grade 8 cap screws have a greater tensile strength than Grade 5. Designed for use in high stress applications, these bolts shall be heat treated, oil quenched, and tempered at a minimum tempering temperature of 800 degrees (F).With thread extending 1 1/4" up the shaft, Proof load is 120,000 PSI with a minimum Yield Strength of 130,000 PSI and Tensile Strength of 150,000 PSI.
$10.44
Original: $29.84
-65%1-14 x 9in UNF Grade 8 Hex Cap Screw—
$29.84
$10.44Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Made from medium carbon steel, Grade 8 cap screws have a greater tensile strength than Grade 5. Designed for use in high stress applications, these bolts shall be heat treated, oil quenched, and tempered at a minimum tempering temperature of 800 degrees (F).With thread extending 1 1/4" up the shaft, Proof load is 120,000 PSI with a minimum Yield Strength of 130,000 PSI and Tensile Strength of 150,000 PSI.
